Air Container

Lower Deck Container-IATA Type 8D-IATA Prefix: APA-APA: LD-2

Maximum Gross Weight
1,225 kg / 2,700 lb
Volume
3.4 m3 / 120 ft3
Tare
60 kg / 132 lb
External Dimensions
(L x W x H)
1,194 mm x 1,534 mm x 1,626 mm
(47 in x 60.4 in x 64 in)
Aircraft Accepted For
777, 767

Lower Deck Container-IATA Type 8-IATA Prefix: AK-ATA: LD-3

Maximum Gross Weight
1,588 kg / 3,500 lb
Volume
4.53 m3 / 160 ft3
Tare
70 kg / 154 lb
External Dimensions
(L x W x H)
1,562 mm x 1,534 mm x 1,626 mm
(61.5 in x 60.4 in x 64 in)
Aircraft Accepted For
 DC10-30 Freighter, DC10, 747, 777, 767


Lower Deck Container-IATA Type 6-IATA Prefix: ALF-ATA: LD-6

Maximum Gross Weight
3,175 kg / 7,000 lb
Volume
6.94 m3 / 245 ft3
Tare
180 kg / 397 lb
External Dimensions
(L x W x H)
3,175 mm x 1,534 mm x 1,626 mm (125 in x 60.4 in x 64 in)
Aircraft Accepted For
 747, 747F, L1011

Lower Deck Container-IATA Type 6B-IATA Prefix: AQ-ATA: LD-8


Maximum Gross Weight
2,449 kg / 5,400 lb
Volume
6.94 m3 / 245 ft3
Tare
120 kg / 264 lb
External Dimensions
(L x W x H)
2,438 mm x 1,534 mm x 1,626 mm (96 in x 60.4 in x 64 in)
Aircraft Accepted For
 777, 767

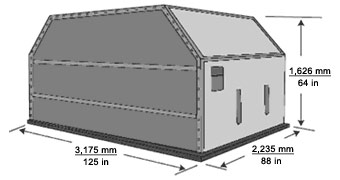

Container-IATA Type 5-IATA Prefix: AAP-ATA: LD-9


Maximum Gross Weight
6,033 kg / 13,300 lb
Volume
9.91 m3 / 350 ft3
Tare
200 kg / 440 lb
External Dimensions
(L x W x H)
3,175 mm x 2,235 mm x 1,626 mm (125 in x 88 in x 64 in)
Aircraft Accepted For
 747, 747F, L1011

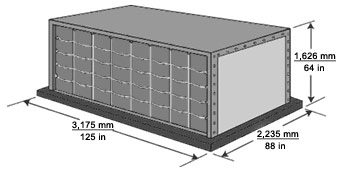

Upper Deck Container-IATA Type 5-IATA Prefix: AAK-ATA: LD-7


Maximum Gross Weight
6,033 kg / 13,300 lb
Volume
9.91 m3 / 350 ft3
Tare
200 kg / 440 lb
External Dimensions
(L x W x H)
3,175 mm x 2,235 mm x 1,626 mm (125 in x 88 in x 64 in)
Aircraft Accepted For
 N/A

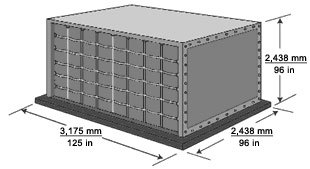

Main Deck Container-IATA Type 2/2Q-IATA Prefix: AMA


Maximum Gross Weight
6,804 kg / 15,000 lb
Volume
17.16 m3 / 606 ft3
Tare
260 kg / 572 lb
External Dimensions
(L x W x H)
3,175 mm x 2,438 mm x 2,438 mm (125 in x 96 in x 96 in)
Aircraft Accepted For
 747F

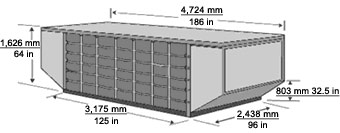

Lower Deck Container-IATA Type 2BG-IATA Prefix: AMU


Maximum Gross Weight
6,033 kg / 13,300 lb
Volume
13.7 m3 / 480 ft3
Tare
200 kg / 440 lb
External Dimensions
(L x W x H)
3,175 mm x 2,438 mm x 1,626 mm (125 in x 96 in x 64 in)
Aircraft Accepted For
747, 747F

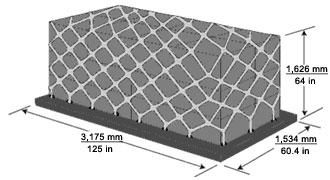

Lower Deck Pallet with Net-IATA Type 6-IATA Prefix: PL

Maximum Gross Weight
3,175 kg / 7,000 lb
Volume
6.94 m3 / 245 ft3
Tare
90 kg / 198 lb
External Dimensions
(L x W x H)
3,175 mm x 1,534 mm x 1,626 mm (125 in x 60.4 in x 64 in)
Aircraft Accepted For
DC10, DC10-30 Freighter, 747, 777

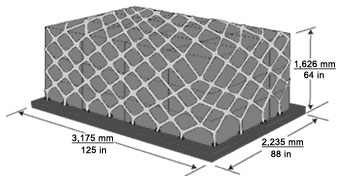

Pallet with Net-IATA Type 5-IATA Prefix: PA


Maximum Gross Weight
4,626 kg / 10,200 lb
Volume
9.91 m3 / 350 ft3
Tare
120 kg / 264 lb
External Dimensions
(L x W x H)
3,715 mm x 2,235 mm x 1,626 mm (125 in x 88 in x 64 in)
Aircraft Accepted For
DC10-30 Freighter, DC10-30
747, 747F, 777, 767-300

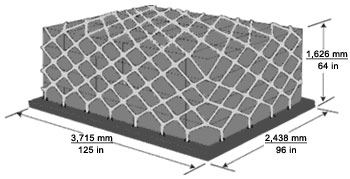

Pallet with Net-IATA Type 2WA-IATA Prefix: PM

Pallet with Net-IATA Type 2WA-IATA Prefix: PM

Maximum Gross Weight
5,035 kg / 11,100 lb
Volume
15.8 m3 / 557 ft3
Tare
130 kg / 287 lb
External Dimensions
(L x W x H)
3,715 mm x 2,438 mm x 1,626 mm (125 in x 96 in x 64 in)
Aircraft Accepted For
DC10-30, Freighter, DC10-30, 747, 747F

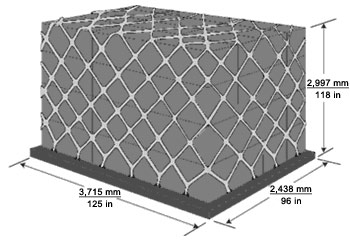

Main Deck Pallet with Net-IATA Type 2H-IATA Prefix: PM


Maximum Gross Weight
6,804 kg / 15,000 lb
Volume
21.16 m3 / 747 ft3
Tare
130 kg / 287 lb
External Dimensions
(L x W x H)
3,715 mm x 2,438 mm x 2,997 mm (125 in x 96 in x 118in)
Aircraft Accepted For
DC10-30 Freighter, 747F

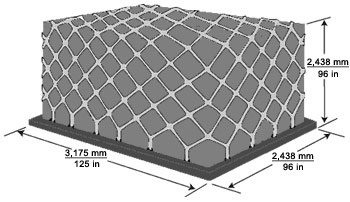

Main Deck Pallet with Net-IATA Type 2/2Q-IATA Prefix: PM


Maximum Gross Weight
6,804 kg / 15,000 lb
Volume
17.16 m3 / 606 ft3
Tare
130 kg / 287 lb
External Dimensions
(L x W x H)
3,175 mm x 2,438 mm x 2,438 mm (125 in x 96 in x 96 in)
Aircraft Accepted For
DC10-30 Freighter, 747F

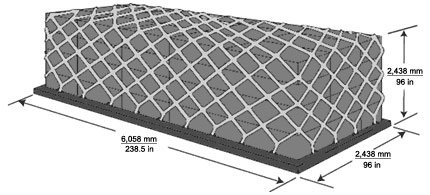

Main Deck Pallet with Net-IATA Type 1/1S-IATA Prefix: PG


Maximum Gross Weight
13,608 kg / 30,000 lb
Volume
33.25 m3 / 1,174 ft3
Tare
400 kg / 882 lb
External Dimensions
(L x W x H)
6,058 mm x 2,438 mm x 2,438 mm (238.5 in x 96 in x 96 in)
Aircraft Accepted For
DC10-30 Freighter, 747F
